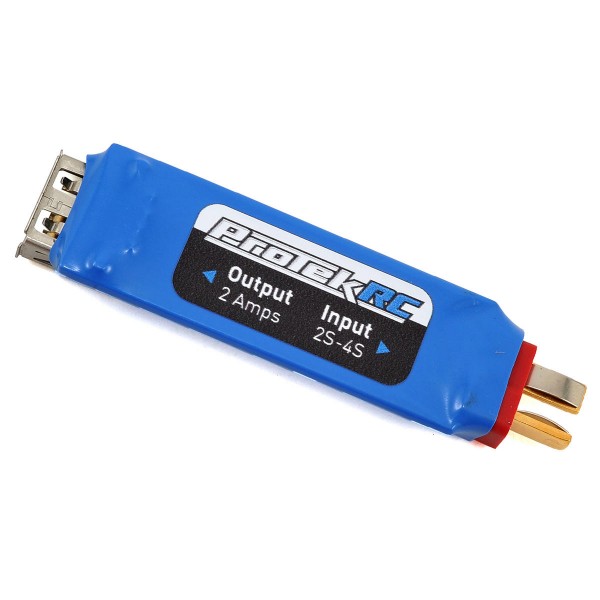

ProTek RC Prodigy "TakeCharge" USB Charging Adaptor
ProTek RC Prodigy "TakeCharge" USB Charging Adaptor
The ProTek R/C Prodigy "TakeCharge" is an incredibly handy device that allows you to power up or charge a variety of USB powered products using a 2S to 4S LiPo/LiFe/LiIon battery.

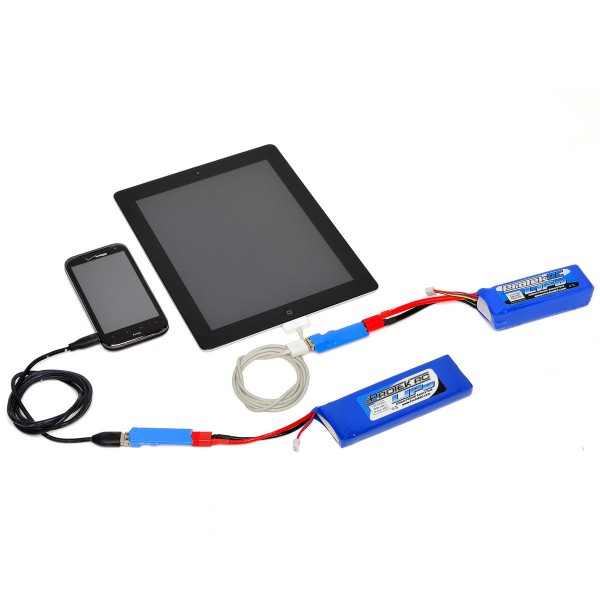

Simply plug a 2S, 3S or 4S lithium battery into the T-Style connector and this adapter will allow you to quickly and efficiently charge and operate your tablet, smart phone, camera and most other USB devices. Built in 6V low voltage cut off protects your batteries, and the compact, lightweight design makes it easy to keep on hand at the track or field.
Features:
- 2 Amp output
- 6V Low voltage cutoff
- Simple to use
- Compact, lightweight and convenient
- Built in low voltage cut off
- T-Style battery connector
- Standard USB input
| Input Voltage | 6.8V - 16.8V (2S - 4S) |
| Output Voltage | 5.00±0.25V |
| Output Ripple Voltage (Max) |
50mVp-p |
| Device Enable Voltage | 6.9±0.7V |
| Low Voltage Cutoff | 6.3±0.7V |
| Operating Switching Frequency | 340±40kHz |
| Efficiency (@ 2 Amps) | 91% typical |
| Output Current (continuous) |
2 Amps |
| Output Current (peak) | 3 Amps |
| Dimensions | 73x19x11mm |
| Weight | 10g |
| Input Connector | T-Style |
| Output Connector | Standard USB |
