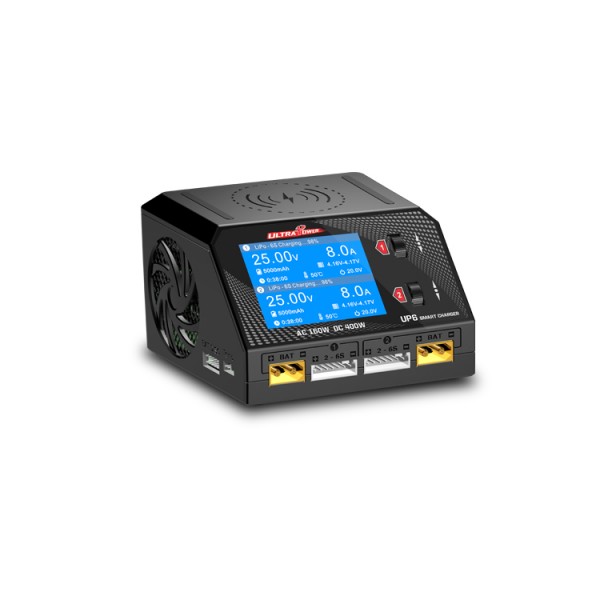

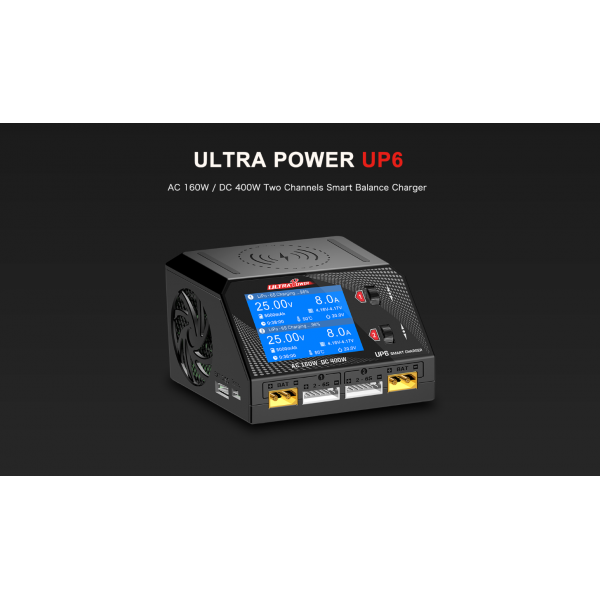

UltraUP6 Ultrapower UP6 400W 10A Smart Dual Channel AC/DC Charger

UltraUP6 Ultrapower UP6 400W 10A Smart Dual Channel AC/DC Charger | Chargers


$259.00 (inc GST)

up6

Availability: IN STOCK

Ultrapower UP6 400W 10A Dual Channel AC/DC Charger is a powerful smart charger specially designed for RC hobby. The UP6 is an upgraded version of the UP610 and UP616. Coming with a 2.4" full LCD screen display, you can view the charging data and even your top up your smartphone!

Features

  • Two independent shuttle key control the charger.
  • Wireless charging port, support to charge at Max.10W.

  • Support external discharging at Max. 200W, 15A.

  • Support power distribution both in AC and DC mode.

  • PC Control & Firmware Upgrade

  • LiHV capable

Specifications

  • Input Voltage: AC 100-120V or 220-240V, DC 9-32V
  • Output Voltage: 0.1-30.0V
  • Charge current: 2 x Max.10.0A
  • Discharge current: CH1: 0.1-2.0 A / 0.1-15.0 A
  • (External discharge mode) CH2: 0.1-2.0 A
  • Charge power:
    • AC 2 x 150w
    • DC 2 x 200w
  • Support power distribution
  • Wireless Charge Power: Max. 10W
  • Discharge power:
    • CH1: 6W/200W (External discharge mode Requires D200 discharger)
    • CH2: 6W
  • Balance current: Max. 1000 mA/cell
  • Support Battery Types: LiPo/LiFe/LiHV/LiIo (1-6S)
  • Cell count: 1-6 cells NiCd/NiMH battery
  • Cell count: 1-16 cells Pb battery voltage: 2V-24V (1-12 cells)
  • LCD Screen type: 2.4" 320x240 IPS LCD
  • Dimensions: 100x99x64 mm
  • Weight: 460g

Includes

  • 1x Ultra Power UP6 10A 400W Smart Balance Charger
  • 1x Manual
