Tekin RS GEN 2 SPEC Sensored Brushless ESC

Tekin RS GEN 2 SPEC Sensored Brushless ESC  | Electronics | ESC | 1/10

Tekin RS GEN 2 SPEC Sensored Brushless ESC


$222.50 (inc GST)

TEKTT1155

Availability: Available on backorder

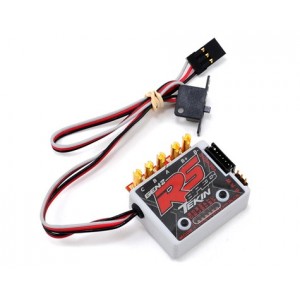

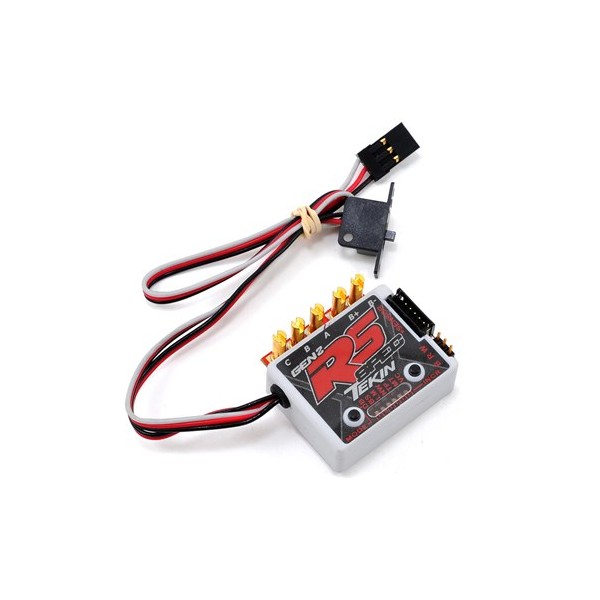

This is the Tekin RS GEN 2 SPEC Sensored Brushless ESC. The RS GEN2 SPEC was developed specifically for Spec class racing, delivering professional performance at an affordable price. Rated for 13.5 turn motors and higher, the GEN2 is the perfect ESC for racers of all calibers, and all classes. This ESC has no timing or boost features, offering true ROAR Spec mode only. The RS SPEC brings racer-friendly tuning and flawless operation to the world of Spec racing. The RS GEN2 SPEC features an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Couple the RS GEN2 SPEC with a Redline GEN2 brushless motor for the ultimate Spec racing package.

Features:

  • ROAR Spec Mode only, no Timing features
  • Ultra-smooth and Precise Throttle and Braking Control
  • Compatible with Sensored/Sensorless Brushless and Brushed Motors
  • Easily Access Programming, Anywhere, Anytime
  • Datalogging Capability
  • EZ Access HotWire Programming Port
  • HotWire PC Interface for Advanced Programming and Updating
  • D2: Dual Drive Mode Technology
  • On-Board Temperature Indicator
  • HDAC: High Density Copper PCB's
  • Sensor Plug for Precise Commutation with all Motors
  • Gold-plated Solder Posts for Easy Wire Replacement
  • Self Test Diagnostics and Factory Reset
  • Pit Tune Mode
  • DGF2: Digital Glitch Filtering V2
  • QuickTune™ Programming
  • One-Touch Radio Calibration

Programming Features:

  • Drag Brake (13 steps)
  • Brake / Reverse Strength (13 steps)
  • Current Limiter (none + 12 steps)
  • Neutral Width (13 steps)
  • Adjustable Throttle and Brake Minimums
  • Custom Throttle Curves
  • Motor/Reverse Type: Brushless, Brushed, No Rev, Rev Delay
  • Voltage Cutoffs (none, 2S, 3S, Custom)
  • ROAR Race Spec "Blinky" Mode
  • Save, Load and Share custom ESC setup files*
  • Save, Load and Share Data Log files*
  • Extensive Tuning via Tekin HotWire PC Interface

*NOTE: Requires HotWire - Sold Separately

Specifications:
Controls: Forward/Brake/Reverse
Input Voltage: 4-7 Cells, 2S Lipo
BEC: 6.0v 3.7amps
Motor Limit Brushless Mode: 13.5 Turn, 540 2-pole (36mm)
Motor Limit Brushed Fwd Only Mode: 20 Turn Silver Can
Motor Limit Brushed Fwd/Rev Mode: 20 Turn Silver Can
Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
Dimensions: 1.0x1.3x.51" (25.4x33x12.9mm)
Weight: .80oz / 22.5g
