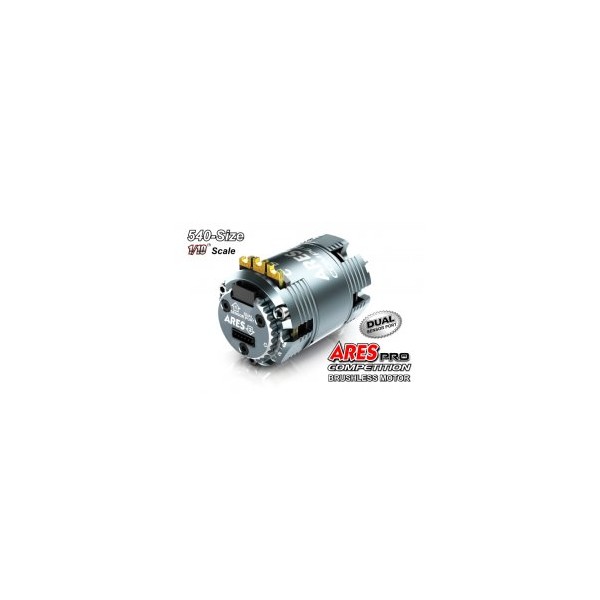

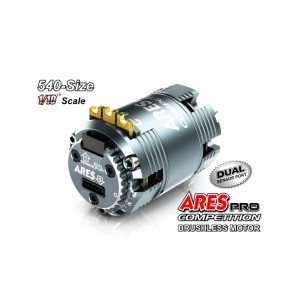

SkyRC Ares Pro 5.5T Brushless Motor

SkyRC Ares Pro 5.5T Brushless Motor | 1/10th Motors

SkyRC Ares Pro 5.5T Brushless Motor


$90.00 (inc GST)

400003-23

Availability: This product is no longer in stock

CNC Machined Billet T6 Aluminum Heatsink Can

 •High Purity Copper Windings Maximizes Conductivity
 •High Power Solder Tabs
 •Removable/Replaceable Rotor
 •Powerful Sintered Neodymium Magnet
 •Precision Engineered for Maximum Energy Conversion
 •Dual Sensor Port
 •Incorporate Radial Fan in Front End Bell
 •Adjustable Timing
 •Compatible with any Sensored/ Sensorless ESC
 •IFMAR, ROAR Compliance




  540-Size High-Torque Sintered Neo Tuning Rotor   540-Size High-Speed Sintered Neo Tuning Rotor



Specification:

Turns: 5.5T
KV (RPM/VOLT): 6450KV
Watts: 430
Rotor: 2Poles
LiPo: 1-2S
Max Current: 100A
Unload Current: 5.8A
Internal Resistance: 0.0061
Shaft Diameter: 3.175mm
Net Weight: 178g
Cooling Fan Inside: No
Sintered Rotor Magnet: Yes
Stepless Timing Adjustment: Yes
Thermal Protection: Yes
Hand Wound: Yes
Racing Type: Modified
