Power HD-1212TH Digital HV Titanium Gear High Torque Servo 14kg / 0.10sec / 57g


$92.50 (inc GST)

1212TH

Availability: IN STOCK

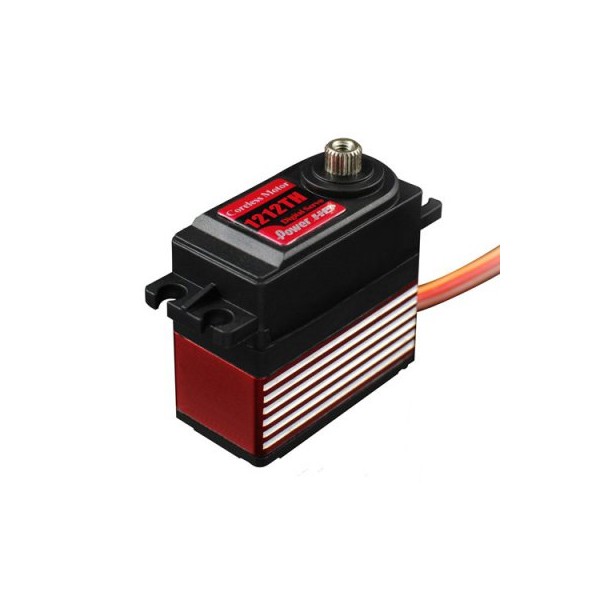

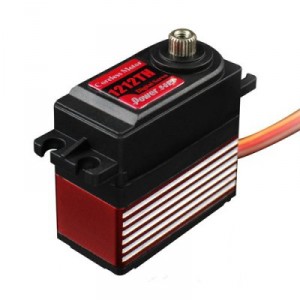

The Power HD 1212TH digital servo boosts titanium gear set and high torque even at 6V, but one of its main features (besides the quality finish) is the fact it will work at 7.4V, offering hight torque and speed.

Specifications

  • Model: HD-1212TH
  • Operating Voltage: 6.0V / 7.4V
  • Operating Current: 300mA / 400mA
  • Operating Speed: 0.12sec.60º/ 0.10sec.60º
  • Stall Torque: 12kg.cm /14kg.cm
  • Size: 40.3X20.2X37.2mm
  • Weight: 57g
  • Dead Band: ≤2uSec
  • Motor: Coreless Type
  • Ball bearing: 2BB
  • Gear: Titanium
  • Connector wire: 300mm
  • Plug: JR Type
  • Operating Temperature Range: -20c+60c
