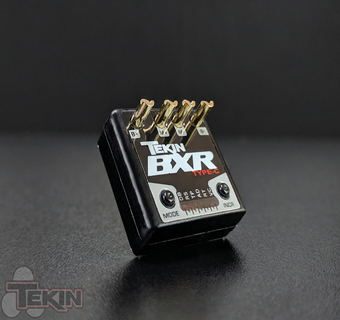

TEKIN BXR Waterproof Brushed ESC
or four payments of $28.24
with
Learn More
Information
Tekin's BXR Type-C Brushed ESC gives your Scale Crawler precise control and a feature set unmatched by other brushed only ESCs. Features like 3rd Channel Input for on-the-fly Drag Brake adjustments and Tekin's exclusive Active Drag Brake Technology make the BXR the perfect Scale Crawler solution. Tekin's Element Proof Design allows you to hit the trails with confidence no matter the weather. Small, capable and versatile; the BXR is ready for any adventure!
Features
3rd Channel Input for On-The-Fly Drag Brake Adjustments <<setup>>
Super Small Footprint
NEW HD Easy Solder Gold Plated Posts
Element Proof Design* Active Drag Brake System
QuickTune™ Programming
One-Touch Radio Calibration
Easily Access Programming, Anywhere, Anytime
HotWire Compatible for Advanced Programming and Updates
On-Board Temperature Indicator
Self Test Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
LiPo Safe with Custom Voltage Cutoffs
DGF2: Digital Glitch Filtering V2
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged.
ON BOARD QuickTune™ PROGRAMMABLE FEATURES DB - Drag Brake (11 steps)
RS - Reverse Speed (11 steps)
TP - Throttle Profile (5 steps)
BT - Brake Type (3 steps)
Modes - FWD Only / FWD-REV / FWD-REV Delay
AD - Active Drag (ON/OFF)
VC - Voltage Cutoff 2S / 3S
Specifications
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S* LiPo / 4-9S NiMH-NiCD
Motor Limit 2S LiPo: 20T 540 Brushed
Motor Limit 3S LiPo: 30T 540 Brushed
Max Current: 60amps**
BEC: 6.0v @ 3.7amps on 2S LiPo
Dimensions: 1.0 x 0.93 x 0.35" / 25.4 x 23.6 x 9mm
Weight: 0.39oz / 11g
*3S and some high torque servos requires the use of an external BEC module.
**per FET manufacturer spec
