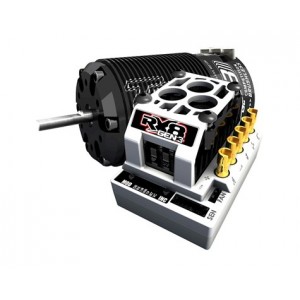

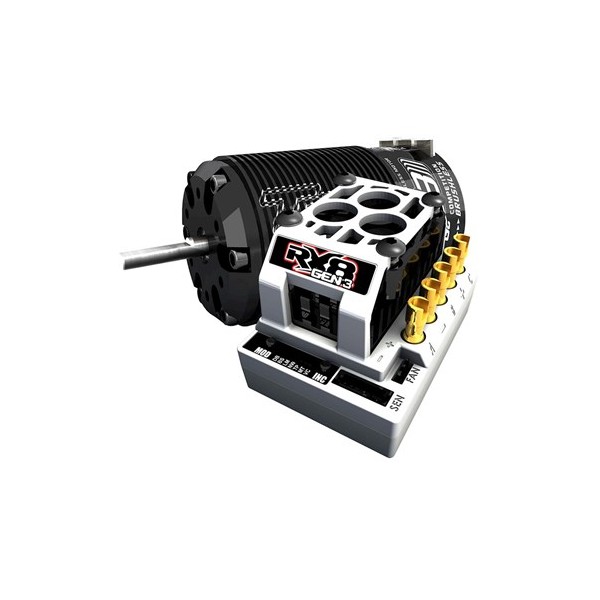

Tekin RX8 GEN3/Redline T8 GEN2 1/8 Buggy Brushless ESC/Motor Combo (1900kV)

Tekin RX8 GEN3/Redline T8 GEN2 1/8 Buggy Brushless ESC/Motor Combo (1900kV)  | ESC & Motor Combos

Tekin RX8 GEN3/Redline T8 GEN2 1/8 Buggy Brushless ESC/Motor Combo (1900kV)


$565.00 (inc GST)

TEKTT2477

Availability: Available on backorder

RX8 GEN3
The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security.

T8 GEN2 Motors
Tekin’s Redline T8 GEN2 motor defines large scale high performance racing. Featuring sensors for flawless, reliable on track operation, the T8 GEN2 provides pro level controlability and power. Capable of both sensored and sensorless operation, the T8 GEN2 motors are the leading edge of large scale RC motor technology. Utilize the torque and speed of your T8 to propel you across the finish line.

Features:

  • RX8 GEN3
    • Updated HD Gold-plated Solder Posts for Easy Soldering
    • Updated Adjustable Torque Control
    • Updated Adjustable Throttle and Brake Frequencies
    • Updated HD High Voltage Programmable BEC
    • Ultra-smooth and Precise Throttle and Braking Control
    • Compatible with Brushless and Brushed Motors
    • Easily Access Programming, Anywhere, Anytime
    • Datalogging Capability
    • EZ Access HotWire Programming Port
    • HotWire Interface for Advanced Programming and Updating
    • D2: Dual Drive Mode Technology
    • On-Board Temperature Indicator
    • HDAC: High Density Copper PCB's
    • Sensor Plug for Precise Commutation with all Motors
    • Self Test Diagnostics and Factory Reset
    • Pit Tune Mode
    • DGF2: Digital Glitch Filtering V2
    • QuickTune Programming
    • One-Touch Radio Calibration
  • T8 GEN2
    • CNC Machined 6061 T6 Billet aluminum Ribbed Heatsink Can
    • Sensored and Sensorless operation
    • High Current Solder Tabs
    • Rebuildable Design
    • Neodymium Sintered Magnet
    • Precision Engineered for Maximum Energy Conversion
    • Dual-Plug Sensor Wire Harness

RX8 GEN3 Specifications:
Controls:
Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC:
6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode:
2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
Motor Limit Brushed Mode:
No Limit
Max Current:
300amps per phase*
Burst Current:
1000amps per phase*
Timing Profiles:
7 choices (on board)
Brushed Modes:
FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes:
FWD Only / FWD-REV / FWD-REV Delay
Dimensions:
1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
Weight:
2.7oz / 76.5g
Recommended Applications:
1/10 4WD SCT, 1/8 4WD Buggy, 1/8 4WD Truggy, 1/8 4WD Monster Truck, 1/8 4WD Touring Car, 1/8 4WD GT, 1/8 Dirt Oval, 1/10 (and larger) Rock Crawler
*
Per Manufacturer Specs



T8 GEN2 Specifications:

KV: 1900 (rated for 4S)
Weight: 311g / 11oz
Shaft Dimensions:
5mm (.125") x 19mm
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
Motor Length:
69mm / 2.71"
Bearing Dimensions:
Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size:
18.5mm *all
Rebuildable:
Yes
