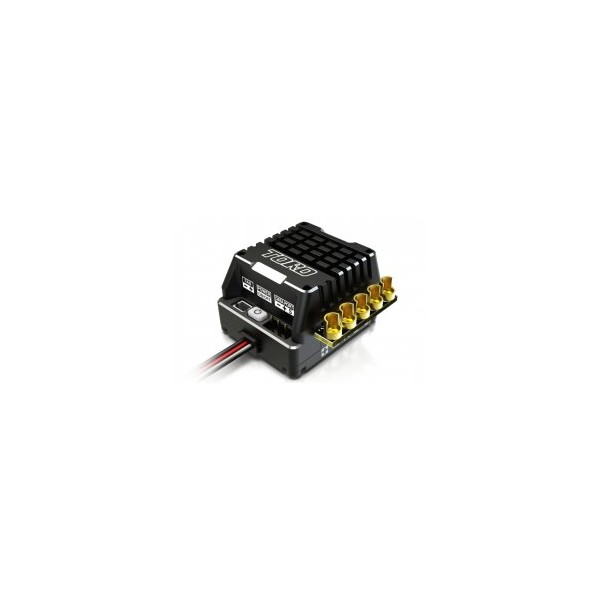

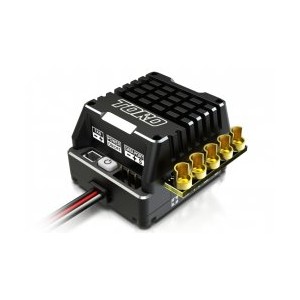

SkyRC Toro TS160 1:10 Brushless Sensored ESC
Details
- Model: SK-300064-01
- Manufactured by: SkyRC
Description
TORO TS160 is designed for 1/10th cars. It runs on 2S to 3S LiPo batteries and has a built-in BEC with 5A and 6.0V/7.4V selectable voltage output. And it comes with internal power capacitors, high speed fan and built-in power switch.
In terms of software, TS160 offers an advanced firmware for smoother throttle control. It can be programmed by program box, SKYLINK software and even your smart phone via Wi-Fi module.
Features:
• Compact design for easy location.
• Aluminum case for better heat dissipation.
• Built in power switch for saving space and reliable operation.
• Built in capacitor.
• Advanced boost and turbo timing system for improving acceleration performance.
• Well-performed throttle and brake control function.
• 10 sets of profiles stored in the ESC for easy calling out.
• Adjustable BEC: 5A and 6.0V/7.4V selectable voltage.
• Powerful Skylink software which can test motor timing and advise the ESC timing setting.
Specifications:
|
|
Weight |
45g (without wire) |
|
|
|
Constant/Burst Current |
|
150A/600A |
|
|
Motor Compatible |
|
Brushless Sensor & Sensorless ESC |
|
|
Car Compatible |
|
1/10, 1/12 all competitions;1/10 and 1/8 Crawlers |
|
|
Motor Limits |
|
2S Lipo or 4-6S NiMH ≥3.5T(1/10 on-road), |
|
|
Resistance |
|
0.00018ohm |
|
|
Battery Cell Count |
|
4-9S NiMH or 2-3S LiPo |
|
|
BEC Output |
|
6V/7.4V@5A, switch |
|
|
Fan |
|
8V@0.2A , MAX 12.6V |
