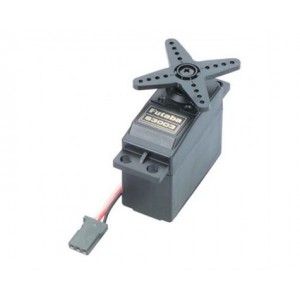

Futaba S3003 Standard Servo
Futaba S3003 Standard Servo
This is the Futaba S3003 Standard Servo. This basic servo is used in cars, boats, or where standard servos are used. This is the replacement for the following servos, S138,S148,S22,S38 and S12. This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.
Specifications
Modulation: Analogue.
Torque: 4.8V: 44.00 oz-in (3.17 kg-cm)
6.0V: 57.00 oz-in (4.10 kg-cm)
Speed: 4.8V: 0.23 sec/60°
6.0V: 0.19 sec/60°
Weight: 1.31 oz (37.0 g)
Dimensions: Length:1.57 in (39.9 mm)
Width:0.79 in (20.1 mm)
Height:1.42 in (36.1 mm)
Rotation/Support: Bushing
Rotational Range: 60°
Pulse Cycle: 30 ms
Pulse Width: 500-3000 µs
Connector Type: J
